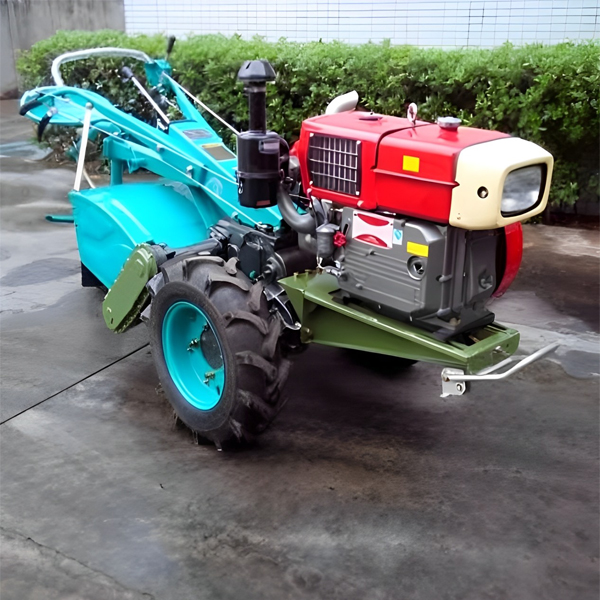

12Hp power tiller machine

•          Chassis InformationR
• Model: GN121/GN151 POWER TILLER/F:
• Overall Dimensions: (LxWxH) 2950 x 980 x 1240mm
• Wheel tread: 570,630,690,750,810mm
• Tyres:6.00-12/Front 6.00-12
•      :4.00-8/Rear 4.00-8
• Skid wheels : 40kg/2 Nos. 40 Kg
• Ground clearance: 210mm
• ItWorking weight (with rotary tiller):480 kg
•

•

• Speed ​​(km/hr) Forward 1.41, 2.51, 4.21, 5.22, 9.27, 15.56
•               Reverse 1.11, 4.12
•

• Rotary tiller Model: 1GL-60
•                    Whole weight 118 kg
•                    Width 600 mm
•                    Transmission type chain drive
•                    Turning Speed/Turning Speed: 1st gear, low, 200; high 251. 2nd gear low,
•                    233; 291/1st: Low:200, High:251 2nd: Low 233 High:291
•                    Number of blades: 18/18 pieces
•

• Engine Information/Engine Information
• Model:S195N Diesel
• Type:Single cylinder, 4-stroke, horixontal,
• Cooling model:water-cooled, diesel
•              :Condenser (Radiator)
• Rated power:9.7kw
• Rated speed:2000rpm
• Fuel efficiency:FF244.8gl/kw.hr/244.8gl/kw.hr
• Net weight/Not weight:150 kg
• Packing/Packing:Case dimensions 116 x 108 x 108cm
•                :N.W/G.W 480/540 kg
• Optional accessories:Trailer
•                     :Disc plough
•                     :Double/Single plough Widened rotory hood
